Install Android 8.0.0 Oreo XXU4CRE8 Official firmware on Samsung Galaxy A5 2017 (SM-A520F) smartphone. Last week on 30th May 2018, Samsung released the Android 8.0.0 based A520FXXU4CRE8 update for Indian (INS) users. After a much long wait, users will be glad to enjoy and experience the all new Android Oreo features on their smartphone. Launched with Android 6.0.1 Marshmallow, the Samsung Galaxy A5 was upgraded to Android 7.0 Nougat in September last year. And now with the all new Samsung Experience 9.0 it has been updated to Android 8.0 Oreo. This latest update was initially rolled out in Russia and Romania with completely uplifted user interface and improved keyboard. Also new emoji characters, GIFs, and stickers have been added along with Bixby automation features and improved security integration. It includes the May security patch as well as bunch of performance improvements and tweaks.

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware

Here, we’ll discuss a detailed procedure on how to install the latest Android 8.0.0 Oreo Official Firmware on Samsung Galaxy A5 2017 SM-A520F smartphone. Note that as this is an official update (Stock ROM) rolled out by Samsung so there are no chances of losing your device warranty. Also as this is an OTA update, the same will work on both rooted as well as un-rooted devices. This latest May 2018 update comes with various improvements in the overall performance and some newly added features as well.

Firmware Info:

Model: SM-A520F
Model name: GALAXY A5 2017
Country: India
Version: Android 8.0.0 Oreo
Build date: Wed, 30 May 2018
Product Code: INS
PDA: A520FXXU4CRE8
CSC: A520FODD4CRD9
PHONE: A520FXXU4CRD7

Disclaimer:

Implement all the steps given below at your own risk. If your Galaxy A5 gets damaged by following this tutorial then we at DroidThunder.com will not be held liable for that.

Compatibility:

This Android 8.0.0 XXU4CRE8 Oreo firmware is compatible only on Samsung Galaxy A5 (2017) with model number SM-A520F. Flashing this update on any other device or variant may result into unwanted outcomes or bricked phone. So confirm your device before moving further.

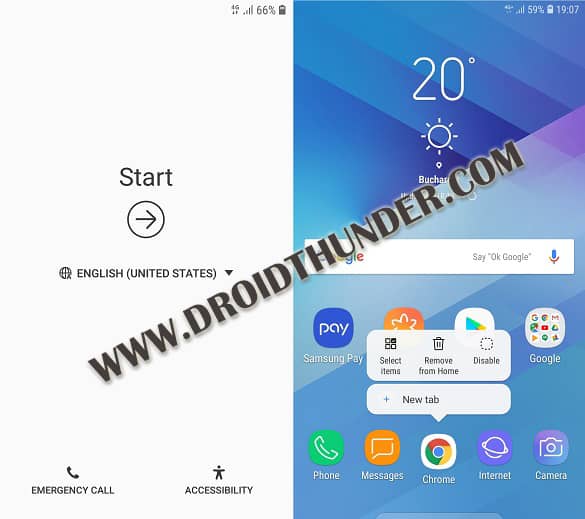

Screenshots:

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware screenshot 1
Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware screenshot 2
Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware screenshot 3
Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware screenshot 4

Pre-Requisites:

  • Lack of battery power might interrupt the flashing process. So make sure to charge your device at least up to 60%.
  • Backup of your phone data is highly recommended as everything gets wiped out in the last step of this process. So backup your contacts, apps, messages, call logs, notes etc. Use any app from Google Play Store for doing so.
  • Install latest Samsung USB drivers on your computer so as to detect your phone when connected with USB cable.
  1. Download latest Samsung USB Drivers.
  • (Optional) To avoid the interruption during the flashing process, temporary disable all the security tools as well as antivirus that are installed on your computer.

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware

Procedure to install Android 8.0.0 XXU4CRE8 Oreo firmware on Galaxy A5 2017 SM-A520F

Download files:

  1. Download Odin3-v3.13.1 for Samsung Galaxy A5 2017.
  1. Download Android 8.0.0 XXU4CRE8 Oreo firmware for Samsung Galaxy A5 2017.


Procedure:

Step 1: Download and extract both the above files to a convenient location on your computer. After extracting the firmware package (.zip file), you’ll see these files in it:

Step 2: Power off your Galaxy A5 2017 completely until it vibrates.

Step 3: Now boot your phone into downloading mode. Refer:

  1. How to boot Samsung Galaxy A5 2017 into Download Mode.

Step 4: Keeping the phone in download mode, connect it to your computer using standard USB cable.

Step 5: Go to the downloaded folder on your computer and launch the downloaded ‘Odin Multi Downloader3-v3.13.1 software which you’ve just received after extraction.

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official odin files
Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 0

As you launch it, the ID:COM section located at the top left corner will turn light blue. Also an Added message will appear in the message box window. This will confirm that your Galaxy A5 2017 has been successfully connected to your computer.

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 1

Note: If such thing doesn’t happen then it’s more likely to be problem with the mobile USB drivers. So just confirm whether you’ve properly installed the mobile USB drivers on your computer or not. You can install them via Samsung Kies or manually install them from the links given in the Pre-Requisites section. If the problem still persists try changing USB cable or the USB port.

Step 6: Click on the Options tab and tick the Auto Reboot and F.Reset Time options. Keep all the other options as they are.

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 2

Note: Do not tick the Re-partition option as it might brick your phone. Don’t use the PIT tab either.

Step 7: Then, click on the BL button present on the Odin window and select the BL_A520FXXU4CRE8_CL13473526_QB18083175_REV00_user_low_ship.tar.md5 from the firmware package file.

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin files

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 3

Step 8: Then click on the CP button and select the CP_A520FXXU4CRD7_CL796579_QB9560389_SIGNED.tar.md5 file.

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin files

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 4

Step 9: Similarly click on the CSC button and select the HOME_CSC_ODD_A520FODD4CRD9_CL13483985_QB17936809_REV00_user_low_ship.tar.md5 file.

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin files

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 5

Note: Normal CSC contains an instruction that allows Odin to wipe out complete data while HOME_CSC contains instruction to only allow wipe of cache. But when a downgrade is done (eg. from Oreo back to Nougat) a factory reset is must. So use normal CSC at that time.

Step 10: And finally click on the AP button and select the AP_A520FXXU4CRE8_CL13473526_QB18083175_REV00_user_low_ship_meta.tar.md5 from the firmware package file.

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin files

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 6

Note: The AP file will take little time to load so be patient and wait.

Step 11: After implementing everything as given above, simply initiate the firmware flashing process by clicking on the Start button.

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 7

Note: Meanwhile your phone will boot itself automatically. Do not disconnect your phone from computer as it will interrupt the flashing process.

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 8
Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 9
Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 10
Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 11
Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 12
Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 13
Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 14

Step 12: The process will hardly take few minutes to complete. As soon as it finishes, the ID:COM section will turn green with the message ‘Pass’ on it. Also your phone will automatically restart. This will confirm that the official Android 8.0.0 XXU4CRE8 Oreo firmware has been successfully flashed on your Samsung Galaxy A5 2017 SM-A520F smartphone. Now you may safely disconnect your phone by removing the USB cable.

Galaxy A5 2017 SM-A520F Android 8.0.0 Oreo Official Firmware Odin 15

Note: If the flashing process fails or if Odin gets stuck or in case your phone gets stuck into boot loop, then close the Odin window, again go into downloading mode and implement the complete procedure as given above.

Success

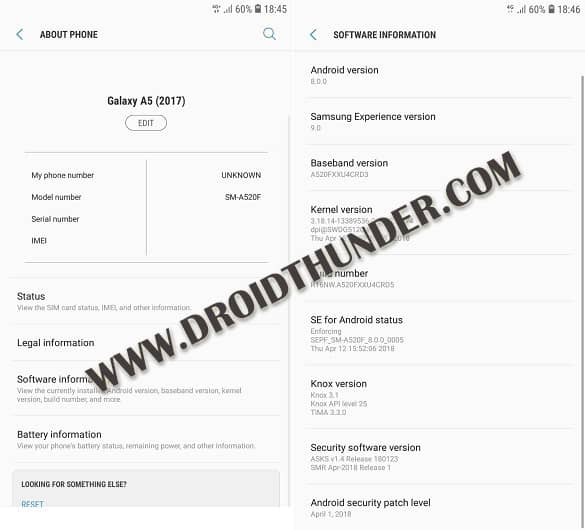

Yo Mama! The latest Android 8.0.0 XXU4CRE8 Oreo firmware has been successfully installed on your Samsung Galaxy A5 2017 SM-A520F smartphone. To verify the same, go to Menu->Settings->About Phone. Enjoy the newly added Android Oreo features on your Galaxy A5. Also don’t forget to share your views and experiences after using it.

As always, if you come across any difficulty while going through the process, then do comment below. I’ll help you out as soon as possible. Till then Keep Smiling and Peace out! 😎✌
