How to Install ADB drivers on Windows

Install ADB drivers (32 bit or 64 bit) on windows 10, windows 7, windows 8, windows 8.1, Windows XP, and Vista operating system. Download Latest ADB and Fastboot SDK Platform Tools and setup Android USB drivers, Fastboot drivers, Universal ADB Interface drivers, and OEM USB drivers for Windows OS.

Fix ADB not recognized, device not found error using our easy steps guide. In this guide we’ll manually install ADB drivers using four methods: 15 seconds ADB Installer, Minimal ADB and Fastboot Tool, ADB Driver Installer, and SDK Platform-tools.

Install ADB drivers on Windows

What is ADB?

Android Debug Bridge or ADB is a client-server program that lets you communicate with a device. ADB is a part of the Android Software Development Kit (SDK). Moreover, it includes three components viz. a client, a server, and a daemon. Besides, a client is the one who runs on your development machine and sends a command.

On the other hand, a daemon is the one that runs as a background process on your android device. And lastly, the communication between the client and daemon is managed by a Server. This communication is most often done over a USB cable, but WiFi connections are also supported. ADB can control your Android device over USB from a computer, transfer files, install apps, uninstall apps, run powerful shell commands, etc.

As long as debugging mode is enabled on your Android device, you can send ADB commands from a computer. Most important, the ADB commands can even work when your Android device is booted into recovery mode. Moreover, the best part is that your device doesn’t even need to be rooted in the ADB commands to work.

Whats is Fastboot?

Fastboot is a protocol that is used to update the flash file system in Android devices. Additionally, this tool works as an alternative to the recovery mode for implementing updates and installations. When your device is booted in Fastboot mode, you can easily modify the file system images from PC over a USB connection.

Not all phones have a Fastboot mode that the user can access. However, for few phones like Nexus, Fastboot is on by default by developers. In this guide, we’ll discuss a step by step procedure on how to install ADB drivers on Windows. Most importantly, the guide given below is applicable for every Android device including Samsung, Google, Sony, Motorola, Lenovo, One Plus, Oppo, Vivo, Huawei, LG, HTC, Nokia, Xiaomi, etc.

How to install ADB Drivers on Windows OS

Follow the instructions given below to manually install ADB and Fastboot drivers on Windows XP, Windows Vista, Windows 7, Windows 8/8.1, Windows 10 32-bit, or 64-bit operating system. If you face any problem, then confirm the latest mobile drivers are installed on your computer or not.

Requirements

  • Ensure to connect your Android device to PC via USB cable.
  • Also enable USB debugging mode on your phone.
  • Moreover, install the latest USB drivers on your PC.

Method 1: Using 15 seconds ADB Installer

Developed by Snoop05, this is an all in one ADB installer tool for Android. As its name suggests, this tool installs ADB, Fastboot, and Google drivers on your computer within 15 seconds. All you need to do is launch this tool on your PC and follow the instructions given.

Downloads

15 seconds ADB Installer.

Steps to install ADB Drivers

  • Download and extract 15 seconds ADB Installer on your PC.
  • Launch the 15 seconds ADB Installer.
  • To install ADB and Fastboot, type Y and press enter key.
  • Then to install ADB System-wide, again type Y and press enter.
  • Now it’ll ask to install device drivers. Again type Y and press enter.
  • This will launch the Device driver installation wizard. Press next to install the device drivers.
  • That’s it! You’ve successfully installed ADB drivers using 15 seconds ADB Installer.

Method 2: Using Minimal ADB and Fastboot Setup wizard

Shimp208, a recognized contributor from XDA developers has compiled this setup wizard. Its main purpose is to install ADB drivers without having to enter any keys like in the previous method. Besides, the total installation of Minimal ADB and Fastboot is around 2 MB in size, thus making it very lightweight.

Downloads

Minimal ADB and Fastboot

Steps to install ADB Drivers

  • Download and Extract Minimal ADB and Fastboot Tool on your PC.
  • Launch it by giving Administrator privileges.
  • The installation Setup wizard will open as given below.
  • Read out the instructions and click Next to continue.
  • Furthermore, click on the Install option to begin the installation process.
  • As soon as you click on Install, the Minimal ADB and Fastboot installation process will start.
  • Finally, the Minimal ADB and Fastboot drivers will be successfully installed on your computer.

Method 3: Using ADB Driver Installer

ADB Driver Installer provides Universal Android ADB USB compatible drivers for Windows operating system.

Downloads

ADB Driver Installer

Steps to install ADB Drivers

  • Download and Extract ADB Driver Installer on your computer.
  • Then right-click and run it as Administrator.
  • Ensure that your Android device is connected to PC with USB debugging enabled.

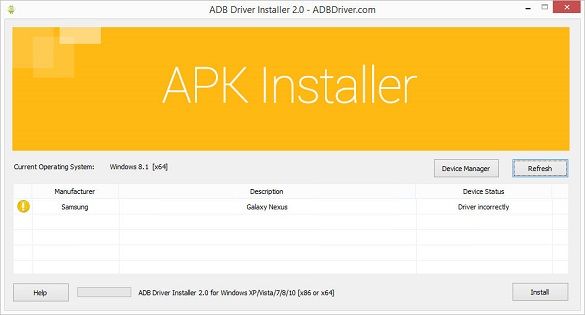

  • As soon as you launch the ADB Driver Installer, the following screen will appear:

ADB Driver Installer 1

  • The device status shows that the drivers are incorrectly installed. So we need to fix this.
  • For that click on the Install option. This will begin the installation of ADB and Fastboot drivers on your PC.

ADB Driver Installer 2

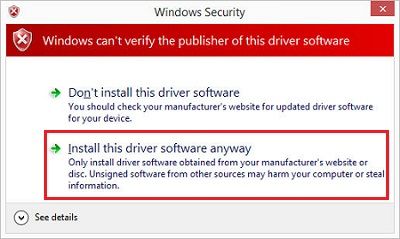

  • If you are prompted Windows can’t verify the publisher of this driver software, select Install this driver software anyway option.

ADB Driver Installer 3

  • This will start the installation of the Universal Android USB driver.
  • Finally, the installation will complete a successful message.

ADB Driver Installer 4

Method 4: Using SDK Platform-tools

In this method, we’ll apply ADB commands in a CMD window on your computer. Let’s get straight into it.

Downloads

platform-tools-latest-windows.zip

Steps to install ADB Drivers

  • Download and Extract the SDK Platform-tools zip file on your PC.
  • After extraction, you’ll see a folder named Platform tools.

SDK Platform Tools 1

  • Move this folder to an easily accessible folder such as C:\adb.
  • In that folder, open a cmd window.

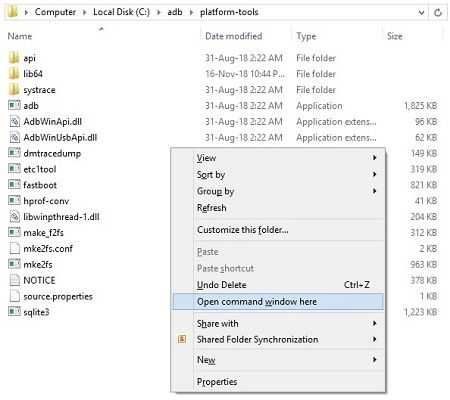

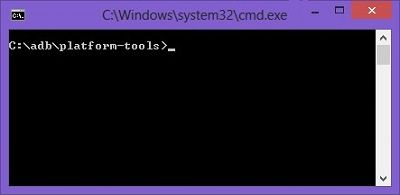

  • For doing so, hold the Shift button and right mouse click anywhere in that folder. You’ll see a list of options from which select Open command window here option. This will launch the command prompt window as given below.

SDK Platform Tools 2SDK Platform Tools CMD 3

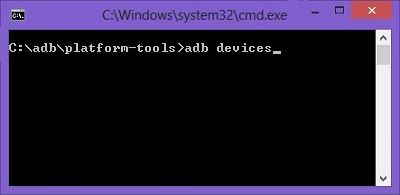

  • To confirm the proper installation of ADB drivers, type the following command, and press enter key.

adb devices

SDK Platform Tools CMD 4

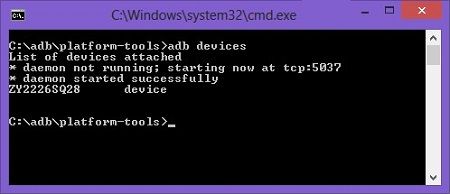

  • As soon as you press enter key, you’ll see a message saying ‘List of devices attached’ along with some random numbers.
  • Moreover, this will confirm the successful connection of your device with PC using ADB drivers.

SDK Platform Tools CMD 5

Note: If such a thing doesn’t happen, then install USB drivers, enable USB debugging mode, and try again. If the problem persists, try changing USB cable or even the USB port.

Conclusion

Finally! You’ve successfully installed the latest ADB and Fastboot drivers on your computer. If you come across any difficulty or have any issue with the above-given tutorial, then kindly comment below.
