How to Unlock Bootloader of One Plus 5

June 19, 2023

Last year with One Plus 3, the OnePlus company has finally made a strong impact on the Android world. Just because of its amazing specs, the One Plus 3 ruled the Android market and users had a new brand to fall in love with. There’s no One Plus 4 this year, but instead the One Plus 5 takes things up another level which is also considered as a perfect smartphone in the market right now.

Launched in June 2017, the One Plus 5 comes with a 5.5 inch touchscreen display with 1080 x 1920 pixels of resolution. Powered by 1.9 GHz Octa core Qualcomm Snapdragon 835 processor, it has 6 GB of RAM with 64 GB of internal storage. As far as the cameras are concerned, the One Plus 5 packs a 20 megapixel primary camera on the rear and a 16 megapixel front shooter for selfies. The One Plus 5 runs the latest Android 7.1.1 Nougat OS and is powered by a 3300 mAh non removable battery.

Unlock Bootloader One Plus 5

Since Android is an open source project, many geeky users will definitely want to try some tweaks like changing, customizing or optimizing the internal system and OS, so as to root, install custom recoveries or flash custom firmwares etc. But before entering into any of the unofficial stuff, the first thing an user should do is to unlock the bootloader of device.

The bootloader is locked as well as encrypted by the manufacturers in order to make sure that users stick to their official Android OS. But if you unlock the bootloader, you can not only gain root access but can also install custom firmwares, flash modified system, kernel, increase internal memory, flash custom recoveries, .img files and much more. Today in this detailed tutorial we’ll discuss some easy steps on how to unlock bootloader of One Plus 5 smartphone using fastboot.

Disclaimer

The process mentioned below is quite risky and can affect your device if implemented incorrectly. We at Droid Thunder. will not be held responsible if your phone gets damaged by following this guide. Although the chances that your device will be damaged are least, still we highly recommend you to follow all the given steps at your own risk and without performing anything by your own.

Prerequisites

  • Charge your One Plus 5 at least up to 60%.
  • Backup your phone data and settings as everything gets wiped out in this process.
  • Enable the USB debugging mode on your phone.
  • Also, enable OEM unlocking and Advance reboot mode from Developer options.
  • Install OnePlus USB drivers on your computer.
  • (Optional) Disable all the security related tools as well as antivirus on your computer.

Downloads

ADB and Fastboot files

Steps to Unlock Bootloader of One Plus 5

  • Download and install ADB and fastboot files on your computer.
  • Then using USB data cable connect your One Plus 5 to computer.
  • Make sure that One Plus USB drivers are installed on your computer.
  • Go to the location C:\Program Files\Minimal ADB and Fastboot folder (where you’ve installed the adb and fastboot).
  • Then by holding shift button of your keyboard, right click on empty space.
  • From the list, choose Open command window here option. This will launch the command window.

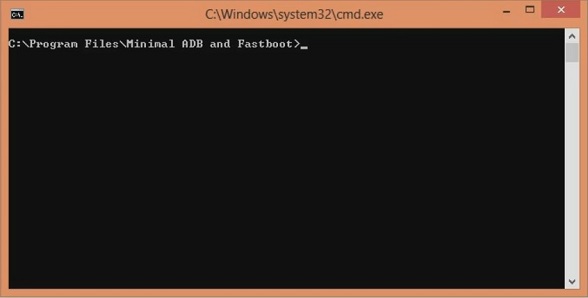

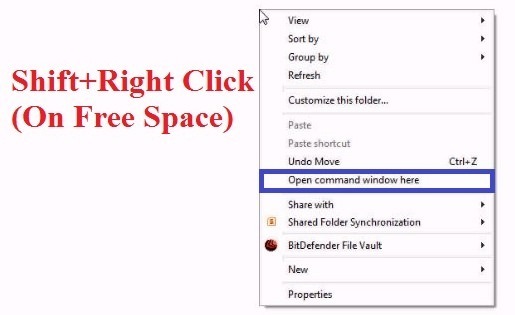

Unlock Bootloader OnePlus 5 using ADB and Fastboot screenshot 1Unlock Bootloader OnePlus 5 using ADB and Fastboot screenshot 2

  • In the command window, type the following commands and hit enter key:

adb devices

Unlock Bootloader OnePlus 5 using ADB and Fastboot screenshot 3

  • As soon as you hit enter key, you’ll see a message saying ‘List of devices attached’ along with random numbers.
  • This will confirm that your One Plus 5 has successfully connected to your computer.

Unlock Bootloader OnePlus 5 using ADB and Fastboot screenshot 4

  • If such thing doesn’t happen then re-install the USB drivers.
  • If the problem still persists then change the USB cable or USB port.
  • Now type the next command and press enter key:

adb reboot bootloader

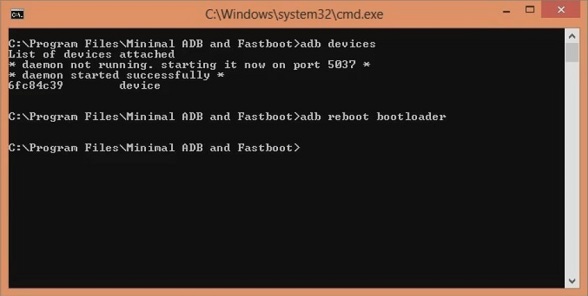

Unlock Bootloader OnePlus 5 using ADB and Fastboot screenshot 5

  • This will reboot your One Plus 5 into fastboot mode as shown below:

Unlock Bootloader OnePlus 5 using ADB and Fastboot screenshot 6

  • Next type the fastboot command and press enter key:

fastboot devices

Unlock Bootloader OnePlus 5 using ADB and Fastboot screenshot 7

  • This command will again confirm the successful connection with some random numbers.

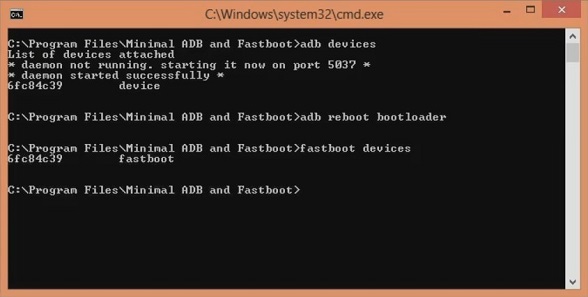

Unlock Bootloader OnePlus 5 using ADB and Fastboot screenshot 8

  • Lets begin the bootloader unlocking process.
  • For that, type the following command and hit enter key:

fastboot oem unlock

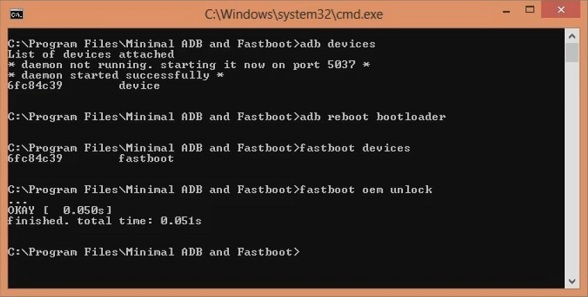

Unlock Bootloader OnePlus 5 using ADB and Fastboot screenshot 9Unlock Bootloader OnePlus 5 using ADB and Fastboot screenshot 10

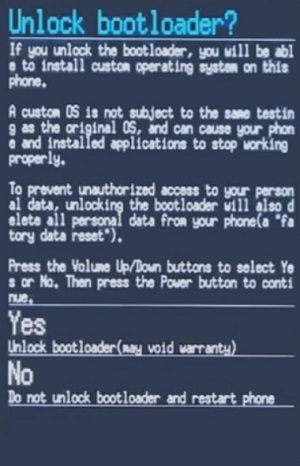

  • As soon as you press enter key, the following screen will appear on your phone:

Unlock Bootloader OnePlus 5 using ADB and Fastboot screenshot 11

  • Use Volume Up and Down keys for navigation and Power key for selection.
  • So using Volume keys navigate to the Yes option and press Power key for selecting it.

Unlock Bootloader OnePlus 5 using ADB and Fastboot screenshot 12

  • This will begin the actual bootloader unlocking process.

Unlock Bootloader OnePlus 5 using ADB and Fastboot screenshot 13Unlock Bootloader OnePlus 5 using ADB and Fastboot screenshot 14

  • This step will clear out entire data on your phone.
  • Hence make sure you have backed up everything before implementing this step.
  • As the process completes, your One Plus 5 will automatically restart itself.

Conclusion

Finally! You’ve successfully unlocked the bootloader of your One Plus 5 smartphone. Now you are free to gain root access, flash those unofficial custom recoveries, custom ROMs, take nandroid backup and restore, increase internal memory, remove bloatware and do much more on your One Plus device. Do share your views and experience in the comments section below.
