Update Galaxy Core 2 SM-G355H to Android 4.4.2 XXU0ANL6 firmware. This smartphone was launched in June 2014 after the tremendous success of its predecessor Galaxy Core i8262. Same like Core i8262 Galaxy Core 2 is a dual SIM phone and comes with Android 4.4.2 KitKat OS. It is absolutely amazing, smooth and its look make it the most sexy phone out there. Some of its specs and features include 1.2 GHz Quadcore Cortex-A7 processor, TFT capacitive touchscreen with 480 x 800 pixels resolution, 5 megapixel camera with auto focus and LED flash, 2000 mAh battery, 4 GB of internal storage, 768 MB of RAM and much more. The most important thing to note is that this smartphones comes at a reasonable price.

  1. Install Android 7.0 Nougat ROM on Galaxy Core 2.

If you have rooted your phone and want to regain your phones warranty back, then flashing an official Stock firmware can do so. Also if you fed up with the bugs or issues after flashing those unofficial custom ROMs then you can flash this latest Android 4.4.2 KitKat firmware and get them cleared up. Installing a firmware can get back all the phone settings as they were when you bought it. So if you want to flash the latest Android 4.4.2 KitKat XXU0ANL6 firmware on your Samsung Galaxy Core 2 SM-G355H then proceed to our simple step by step guide given below.

Samsung Galaxy Core 2 SM-G355H to Android 4.4.2 XXU0ANL6 firmware

Firmware Info:

Model: SM-G355H
Model name: GALAXY Core 2 DUOS
Country: India
Version: Android 4.4.2
Build date: Fri, 19 Dec 2014
Product Code: INS
PDA: G355HXXU0ANL6
CSC: G355HODD0ANL1
MODEM: G355HDDU0AOA1

If you have any kind of custom ROM installed on your Galaxy Core 2 then it will get replaced by this official Android 4.4.2 KitKat firmware. Also the custom recoveries like Clockworkmod or TWRP will get replaced with the official android stock recovery and your phone will no longer be a rooted phone. But you can still root it any time after flashing this update. This guide for flashing the latest Android 4.4.2 KitKat firmware on your Galaxy Core 2 is risky and may brick your phone if done in a wrong way. So implement everything mentioned below properly and without any mistake. If any damage happens to your device by following this guide, then neither we nor Samsung Electronics Ltd. will be held responsible for that. However the chances that your device will get damaged or bricked are least but still I highly recommend you to follow all the instructions at your own risk.

This Official Android 4.4.2 XXU0ANL6 firmware update is only for Samsung Galaxy Core 2 having the model number SM-G335H. Applying this on any other device or variant may result into unwanted outcomes or bricked device. So confirm your device model number with the mentioned one from Homescreen–> Menu–>Settings –> About Phone.

Pre-Requisites:
  • The battery of your Galaxy Core 2 must be charged at least up to 60%. This is essential as lack of battery power may increase the risk of interruption during the flashing process.
  • Backup all your important phone data and settings including contacts, sms/mms, apn settings, call logs, whatsapp messages, memos etc. on your SD card or on your PC for more safety. Do not skip this step as in the last step of this procedure everything gets wiped.
  • Make sure that you’ve enabled the USB debugging mode on your phone. If not, then do so by following the path Menu->Settings->Applications->Development->USB debugging.
  • Ensure that you have installed mobile specific drivers on your PC so as to detect the phone when you connect it to your PC. You can install them from the Samsung Kies CD which you’ve got at the time of purchase or just manually install them from link given below.
  1. Download latest Samsung USB Drivers.
  • Disable all the security tools as well as antivirus that are installed on your PC temporarily. They may increase the risk of interruption during the flashing process.

Procedure to install Android 4.4.2 XXU0ANL6 firmware on Samsung Galaxy Core 2 SM-G335H

Download files:

  1. Download Odin3-v3.09 for Samsung Galaxy Core 2 SM-G335H.
  1. Download Android 4.4.2 KitKat XXU0ANL6 firmware for Samsung Galaxy Core 2 SM-G335H.


Procedure:

Step 1: Download and extract both the above files in a specific folder on your PC.

Step 2: Now you need to boot your Galaxy Core 2 into downloading mode. For that firstly switch off your phone completely.

Step 3: After it is switched off, press and hold the ‘Home Button (middle button) + Volume down key + Power Button’ simultaneously until you see a warning message. Leave all the three keys now.

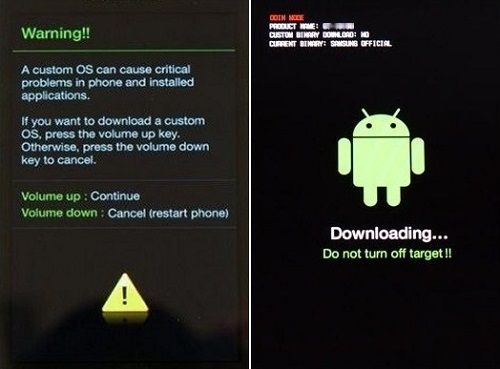

Step 4: Keeping the phone as it is, connect it to PC using the USB cable. Now just press Volume Up key to continue. This will directly land you into downloading mode. Refer screenshot.

Download mode

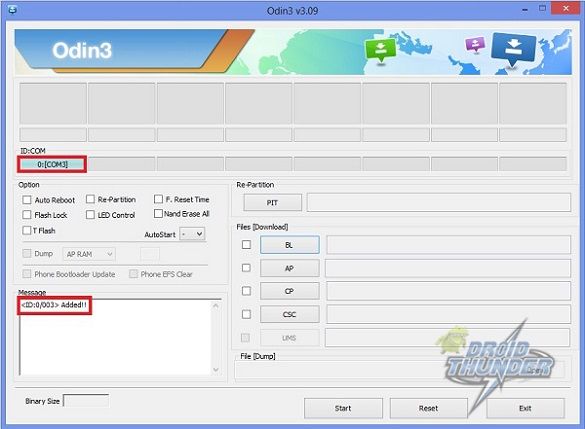

Step 5: On PC, navigate to the downloaded folder & launch ‘Odin Multi Downloader3-v3.09′ software which you’ve just received after extraction. As soon as you open it, the ID:COM section located at the top left corner will turn light blue. Also an Added message will appear in the message box window. This will confirm that your Galaxy Core 2 has been successfully connected to the PC. But if this thing doesn’t happen then it’s more likely to be problem with the mobile drivers. So verify whether you’ve properly installed the mobile specific drivers on your PC or not. You can install them via Samsung Kies or manually install them from the links given in the Pre-Requisites section.

Samsung Galaxy Core 2 SM-G355H to Android 4.4.2 XXU0ANL6 firmware Odin Screenshot 1

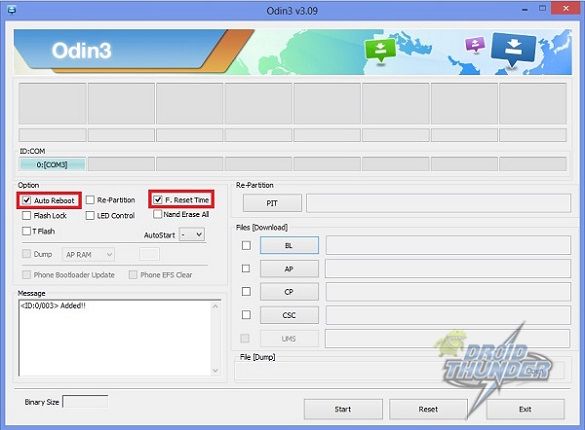

Step 6: You’ll find Auto Reboot and F.Reset options on the Odin window. Tick only these two options and leave all the other options as they are. Do not even think of ticking the Re-partition option as it may increase the risk of bricking your phone.

Samsung Galaxy Core 2 SM-G355H to Android 4.4.2 XXU0ANL6 firmware Odin Screenshot 2

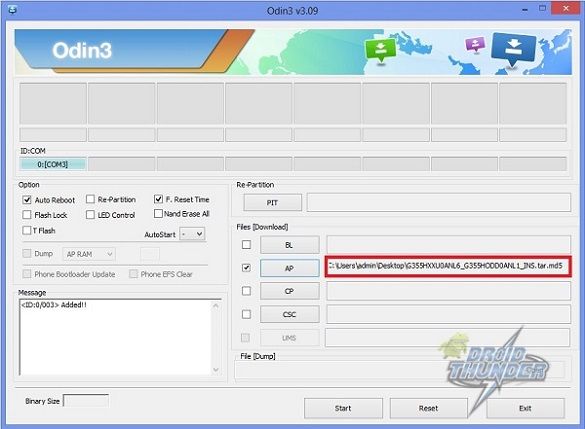

Step 7: Now, tick against ‘AP’ button and navigate to the the firmware package & select it (The extracted firmware file may look like: G355HXXU0ANL6_G355HODD0ANL1_INS.tar.md5).

Samsung Galaxy Core 2 SM-G355H to Android 4.4.2 XXU0ANL6 firmware Odin Screenshot 3

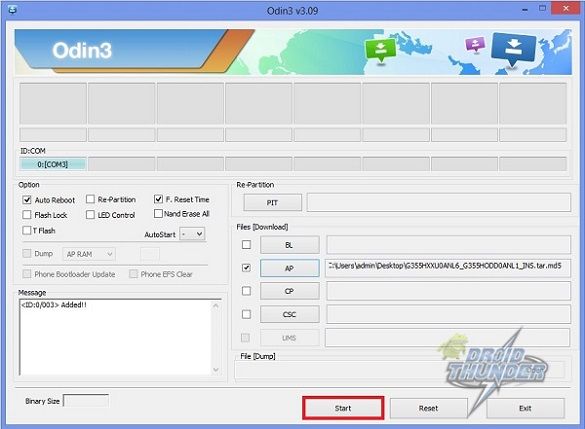

Step 8: That’s all! You need to just initiate the flashing now. For that press the Start button located on the Odin window. Note that the phone will automatically boot itself while the process goes on. Do not interrupt the flashing process by disconnecting the USB cable.

Samsung Galaxy Core 2 SM-G355H to Android 4.4.2 XXU0ANL6 firmware Odin Screenshot 4

Step 9: Be patient and wait for the process to complete. As soon as it completes successfully, you’ll see that the ID:COM section on the Odin window is turned green with the message ‘Pass’ below it. This will confirm that you have properly flashed the Official Android 4.4.2 XXU0ANL6 firmware on your Galaxy Core 2 duos. Now you can disconnect your phone by safely removing the USB cable.

Note: If the process fails or if Odin gets stuck or in case your device gets boot loops, then close the Odin window, remove battery from your Galaxy Core 2 and re-insert it. Again go into downloading mode and follow the same procedure as given above.

Step 10: After flashing the firmware package, switch off your Galaxy Core 2 completely. Now boot into stock recovery mode. The same can be done by holding Home button (Middle button) + Volume Up + Power button simultaneously until the recovery mode appears.

Note: In Android stock recovery touch doesn’t work so use Volume up and down keys for navigation and Home button (middle button) for selection.

Step 11: Using Volume keys navigate to the ‘Wipe data/factory reset’ option and ‘Wipe Cache partition’ option & select them to clear all the data and caches from your phone memory.

Step 12: Return back and restart your Galaxy Core 2 by selecting ‘reboot system now’ option.

Note: If the process fails or you get any kind of error then just try to implement all the steps with Odin3.07. Use the PDA tab in place of AP in it.

Flash Android 5.0.1 Lollipop ROM on Galaxy Core 2 using our article:

  1. How to install latest 5.0.1 Lollipop ROM on Galaxy Core 2 SM-G355H smartphone.

Refer our guide to install Android 6.0.1 Marshmallow on Galaxy Core 2:

  1. How to Install Android 6.0.1 Marshmallow ROM on Galaxy Core 2 SM-G355H.

Refer our guide to install Android 7.0 Nougat on Galaxy Core 2 SM-G355H:

  1. How to Install Android 7.0 Nougat ROM on Galaxy Core 2 SM-G355H.

Success

Great! You are succeeded in flashing the latest official Android 4.4.2 XXU0ANL6 firmware on your Samsung Galaxy Core 2 SM-G335H. To confirm the same go to Menu->Settings->About Phone. This is a Stock ROM officially from Samsung and is not any kind of unofficial custom ROM. So if your Galaxy Core 2 is stuck in any problem then you can flash this firmware to regain everything back. In case if you come across any difficulty, just inform me through the comments section. I’ll be happy to help you. Till then Enjoy! 🙂

Also Read: How to Root & install CWM recovery on Galaxy Core 2 SM-G335H phone.
